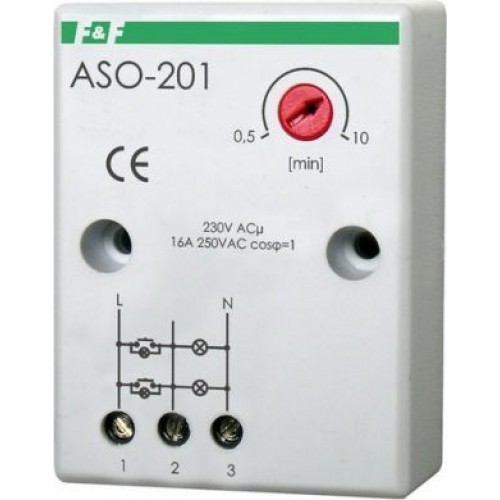

ASO201 Aut.slēd. kāpņu telpāmU n=230V,I=16A,screw term.
- Preces Kods: 3510023
- Pieejamība: Pēc pasūtījuma
- Mūsu pārstāvis sazvanīsies ar Jums lai saskaņot preču piejamību.
Cena: 10.53€
Preces parametri
| Neto svars | 0.1 kg |
| Rated switch current | 10 A |
| Max. load fluorescent lamp (parallel compensated) | 800 VA |
| Max. load fluorescent lamp (Duo circuit) | 1000 VA |
| Max. load fluorescent lamp | 550 VA |
| Max. incandescent lamp load | 2300 W |
| Pre-warning of switching-off | Dimming up to 0 % |
| Wiring system | 3 and 4 wire configuration |
| Frequency control voltage 1 | 50 Hz |
| Type of control voltage 1 | AC |
| Control voltage 1 | 230 V |
| Release-delay | 0.5 .. 10 min |
| Number of normally open contacts | 1 |
| Built-in depth | 13 mm |
| Function | Electronic |
| Mounting method | Flush mounted (plaster) |
