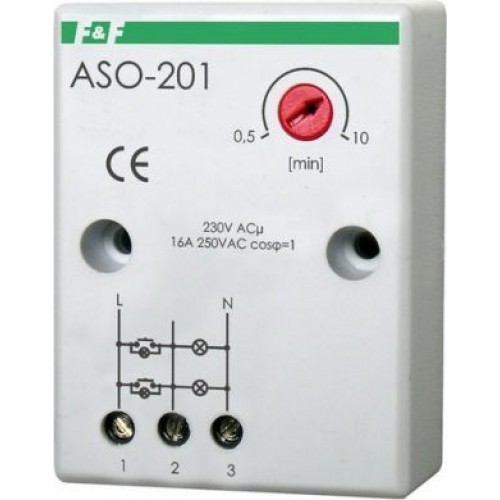

ASO201 Aut.slēd. kāpņu telpāmU n=230V,I=16A,screw term.

Preces parametri

Neto svars	0.1 kg
Rated switch current	10 A
Max. load fluorescent lamp (parallel compensated)	800 VA
Max. load fluorescent lamp (Duo circuit)	1000 VA
Max. load fluorescent lamp	550 VA
Max. incandescent lamp load	2300 W
Pre-warning of switching-off	Dimming up to 0 %
Wiring system	3 and 4 wire configuration
Frequency control voltage 1	50 Hz
Type of control voltage 1	AC
Control voltage 1	230 V
Release-delay	0.5 .. 10 min
Number of normally open contacts	1
Built-in depth	13 mm
Function	Electronic
Mounting method	Flush mounted (plaster)
